OVERVIEW
Ultimate Protection
Trellidor Rollerstyle® motorised roller shutters are manufactured in a range of strengths to secure doors and windows against crime. Made from extruded aluminium or roll-formed galvanised steel with advanced attack resistant features, the various models are specified depending on the risk profile of the location. The extremely robust Rollerstyle® LDS65 S1 is LPCB LPS1175 certified for strength under attack. Testing is carried out by BRE Global according to Loss Prevention Certification Board (LPCB) protocols for assessing intruder-resistant products, including the LPS 1175 standard.
PRODUCT RANGE

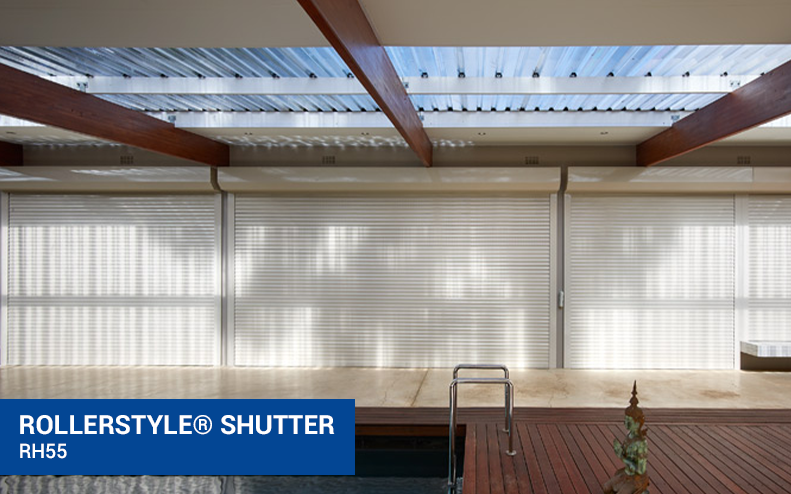

ROLLERSTYLE® RH55
Double-walled aluminium roller shutter.
A double layer of interlocking curtain slats measuring 55mm in height. The curtain can be made up of solid or vented slats. The vents are only visible when the curtain is extended.

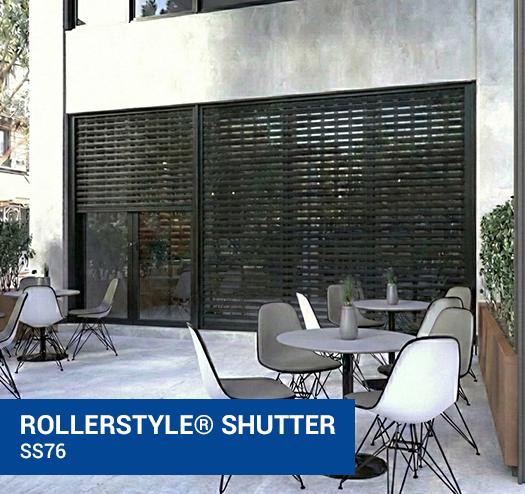

ROLLERSTYLE® SS76
Single walled steel roller shutter.
A single wall steel roller shutter with 72mm horizontal slats. There is a choice of solid, punched or perforated slats.
ROLLERSTYLE® LDS65
A superior strength double-walled aluminium shutter with alternating 55mm slats and 10mm actuators and an interlocking hinge system for high security. Its anti-lift and end -retention features increase resistance to forced entry.

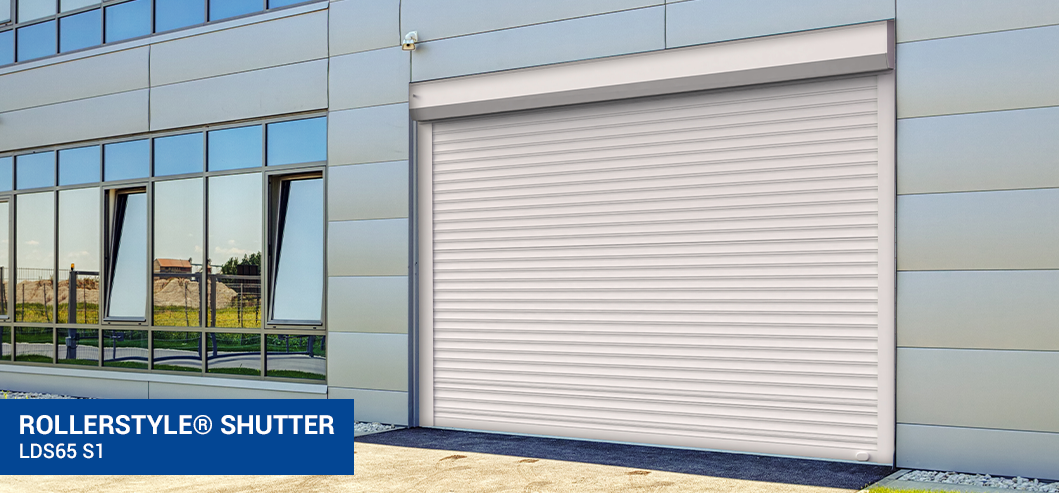

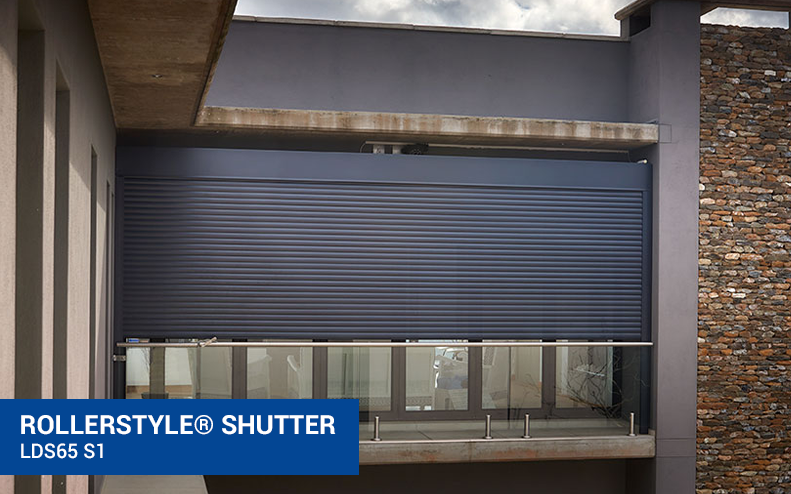

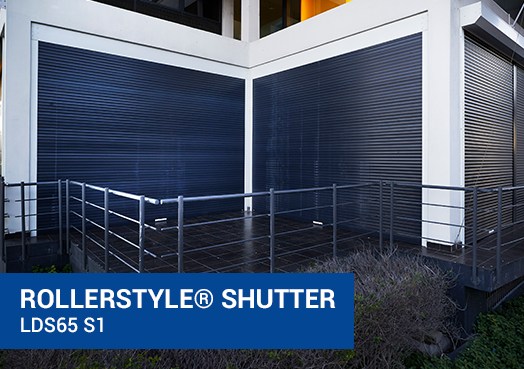

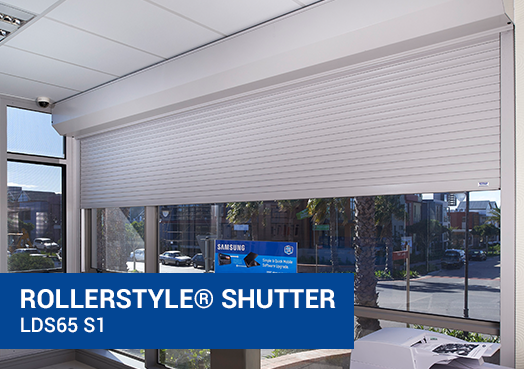

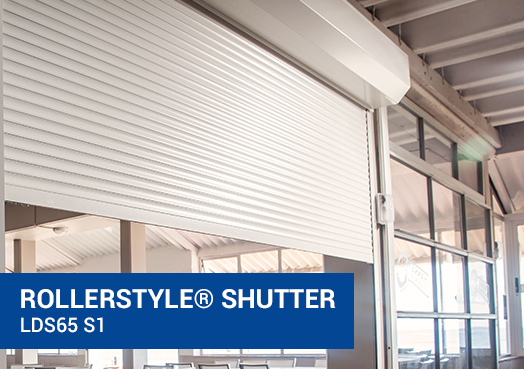

ROLLERSTYLE® LDS65 S1
A superior strength double-walled shutter with alternating 55mm slats and 10mm actuators and an interlocking hinge system for high security. Its anti-lift and end -retention features increase resistance to forced entry.
ROLLERSTYLE® LDS65 S2
The Rollerstyle® LDS65S2 shutter is the strongest in the Rollerstyle range. In addition to the anti-lift and end retention systems, the double wall aluminium slats are reinforced with cut-resistant alloy to protect against angle grinder attacks.
COMPARISON TABLE
ROLLERSTYLE® COMMERCIAL PRODUCT RANGE BENEFITS
LOCK OUT THE WORRY
Trellidor Rollerstyle® shutters are expertly designed for doors & windows to safeguard business enterprises.
CUSTOMISED COMMERCIAL SAFETY
Motorised, made to measure shutters in a choice of strengths, professionally installed to fit neatly.
LONG-TERM INVESTMENT
High-quality, corrosion & UV resistant Trellidor barriers require minimal maintenance and are made to last.
TECHNICAL OVERVIEW
Trellidor Rollerstyle® automated roller shutters offer supreme strength using advanced attack-resistant features. In the lockdown position they provide outstanding security, weather protection, and sound insulation. Automated shutters integrate seamlessly into central control systems.
- Custom-made to fit a wide range of openings including doors and windows.
- Selection of control devices such as wall mounted and hand-held transmitters.
- Manual over-ride and obstacle detection available as accessories.
- Compact shutter box can be recessed into ceiling in suitable locations.
- Shutters protect against poor weather and provide thermal and acoustic insulation.
- No tripping hazard as shutter lifts up and no bottom track is required.
- Components treated before powder coating to prevent corrosion.
- Warranty against defective workmanship, materials and corrosion.
PRODUCT CONFIGURATION VIDEOS
Colours
All Trellidor products come in 8 standard colours. Special colours are available on request, allowing you to choose a colour to best suit your decor or your corporate colours.
The Trellidor powder coating system includes a pre-treatment process that enhances our products’ corrosion and UV resistance. The powder coating is ideal for coastal and inland conditions and increases the lifespan of the barrier by retaining its quality finish.
Actual colours may vary slightly due to device settings, differences in printing substrates, or personal perceptions of colour.
WHITE
BRONZE
SAND
GREY
ALUMINIUM
ANTHRACITE GREY
BLACK
STONE GREY
WHY TRELLIDOR
A BRAND YOU CAN TRUST
We were established in 1976 and have secured millions of doors, windows and other openings since our journey began.
CLOSE TO OUR CUSTOMERS
We have a large network of outlets so that we can provide customised products and expert personalised service with local knowledge.
INNOVATIVE PRODUCT RANGE
We’re constantly updating our range to reflect current trends, but continue to supply our old favourites that are trusted around the world.
PEACE OF MIND PROTECTION
We invest in international third-party testing and certification of our high-end designs to ensure that our entire range provides the best safeguarding on offer.
DEPENDABLE PRODUCT WARRANTIES
Our warranties are not a sales gimmick. They are internationally verified, realistic, responsible, and reflect our confidence in our products.
LONG LASTING INVESTMENT
Our world-class anti-corrosion pretreatment and powder coating process creates a smooth, high-quality finish for a durable product with a long lifespan.
FREQUENTLY ASKED QUESTIONS
Roller shutter doors can assist with internal temperature control and sound insulation.
Roller shutters are an extremely reliable form of barrier security. There are several models available, ranging from single wall to double wall and varying slat widths. These factors influence the strength of the roller shutter. The choice of model will depend on how vulnerable the location is to criminal attack.
Trellidor offers an optional easy-to-use manual override crank handle for use with roller shutters in case of power outages or other electrical malfunction.
Roller shutters roll up and down inside side guides that are recessed into the walls. To open, they roll up into a neat shutter box. To close, they roll down to the floor. They are motorised and operated using a hand-held or wall mounted remote control pad.
Trellidor recommends the following cleaning method for aluminium roller shutters:
* Use a premium quality (salt free) car wash liquid, mixed with water as per the manufacturer’s directions.
* Use this mix and a soft cotton cloth to clean the entire roller shutter ‘curtain’ i.e. the slats that make up the shutter.
* Also wipe down the side guide channels in the walls.
* Never use abrasive cleaners, detergent based cleaners or solvent based cleaners such as scouring agents, dishwashing liquids, washing powders, thinners etc. These could adversely affect the expected life of the product.
* Hard to reach areas may require the use of a soft nylon bristle brush like a dishwashing brush.
* Dry the roller shutter slats and guides with a soft cotton cloth or chamois.
* Do not try to clean the motor inside the shutter box.
* But you can clean the box itself, wiping it clean as above.
Roller blinds are a simple and practical solution available in a wide variety of fabrics that can do anything from block out heat and light. Roller Shutters, also known as rolling shutters, roll up doors or roller doors, are made from steel or aluminium. They can be automated and remote controlled, or manually operated.
