CLEAR GUARD OVERVIEW
Trellidor Clear Guard
Clear security screens are the perfect protection for windows that have lovely views. You can see right through the mesh screen. It does not clutter up or block your view, but it does offer exceptional protection from intruders.
Clear security screens custom-made for best fit
Fully framed for increased strength.
Your Perfect Match
Available in multiple configurations to match wide range of door and window styles.
Matt White
Matt Bronze
Sand
Matt Light Brown
Matt Aluminium
Matt Charcoal
Matt Black
Proven Protection

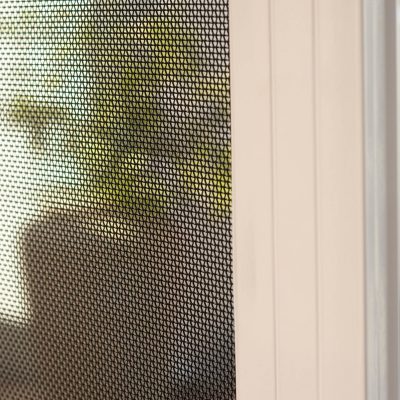

Made from a high tensile, coated stainless steel mesh panel and full aluminium frame to provide you with protection you can trust.
Clear security screens for transparent protection
CLEAR GUARD TECHNICAL
Trellidor Clear Guard security screens for unobstructed views.
Trellidor Clear Guard can be custom made to fit windows, doors, patios and other openings. It is very popular wherever an uncluttered appearance combined with functionality is important such as homes, offices, eco-estates, game lodges, hotels, hospitals and locations with lovely views. The design of each unit is sleek and streamlined and its most appealing attribute is that you see right through the mesh to the view beyond.
- Custom made protective screens that provide see-through security.
- Tailored to fit a wide range of door and window styles.
- Excellent resistance to attack by intruders.
- Effectively blocks out baboons, monkeys, mosquitoes and other pests.
- Fully framed for added strength under attack.
- Industrial grade woven stainless steel mesh panel surpassed international strength tests.
- Assists with internal temperature control and energy efficiency by blocking out sun’s UV rays.
- Allows airflow through the mesh screen.
- Durable and corrosion resistant even in coastal conditions.
- Suitable for all levels of security risk, from low to high.
- Carries warranty against defective workmanship, materials and corrosion.
- Top of the range customised stainless steel hinges for increased strength.
Fixed Panels
Awning Windows
Hinged Doors
French Doors and Windows
Bi-Fold for doors and windows
Sash Windows
Sliding Doors and Windows
Sash Windows
Trellidor Clear Guard doors and windows have been subjected to a range of standardized international requirements and attack tests and surpassed all requirements. These tests include the following standard tests for security screen doors and windows according to the Australian Standard.
| TEST CONDUCTED | TEST PASSED |
| Knife Shear Test AS5039, AS5041-2003 | ✅ |
| Dynamic Impact Test AS5039, AS5041-2003 | ✅ |
| Impact Resistance Test ASTM D2794 (QUALICOAT) | ✅ |
| Jemmy Test AS5039, AS5041-2003 | ✅ |
| Natural Salt Spray Test ASTM B117 | ✅ |
| UV Testing PTEC (Electrical and Electric Products Testing Centre) | ✅ |
| Wind Tunnel Aerodynamic Testing PBRU (Phetchaburi Rajabhat University Laboratory) | ✅ |
| Solar Heat Test PTEC (Electrical and Electric Products Testing Centre | ✅ |
| Mosquito Protection Test CMU (Chiang Mai University Laborator | ✅ |
| Gloss Test AS3715 (ISO2813/QUALICOAT) | ✅ |
| Coating Thickness Test AS2331/ISO2360 (QUALICOAT) | ✅ |
| Eye Visual Colour Test AS3715 (QUALICOAT) | ✅ |
| Resistance to Boiling Water QUALICOAT | ✅ |
| Polymerisation Test (MEK) AS3715 (QUALICOAT) | ✅ |
| Bend Test ISO1519 (QUALICOAT) | ✅ |
| Indentation Test AS3715 (ISO2815/QUALICOAT) | ✅ |
| Adhesion Test AS3715 (ISO2409/QUALICOAT) | ✅ |
OPTIONS AND ATTRIBUTES:
Trellidor Clear Guard can be designed to protect a wide range of door and window formats including:
- Awning and casement windows
- Double Sliding, Double Track Doors & Windows
- French doors and windows
- Sash windows
- Fixed applications
- Sliding doors & Windows
- Hinged doors
- Bi-fold Doors and Windows
- Single Sliding, Single Track Doors & Windows
FLEXIBLE COLOUR RANGE (FRAME ONLY)
MATT WHITE
MATT BRONZE
MATT SAND
MATT LIGHT BROWN
MATT ALUMINIUM
MATT CHARCOAL
MATT BLACK
Trellidor Clear Guard security screen products come in 2 standard (White & Matt Bronze) and 5 non-standard colours (Sand, Light Brown, Matt Aluminium, Matt Charcoal and Matt Black). Special colours are available on request, allowing you to choose a colour to best suit your decor or your corporate colours.
All Trellidor products are finished in a state-of-the-art powder coating plant, as such the colours on this webpage will vary from the actual product colour. This is due to the difference in the way that light reflects off different mediums.
Corrosion Resistant Coating
The Trellidor powder coating system includes a pre-treatment process that enhances our products’ corrosion and UV resistance. The powder coating is ideal for coastal and inland conditions and increases the lifespan of the barrier by retaining its quality finish.
